Features
Stainless steel housing ideal for using in the food/chemical industry
Rocking absorption type
Designed for tanks and hoppers
Compression typed

Specification

Rated capacities ....................................500kgf, 1tf, 2tf, 3tf, 5tf
Rated output ............................................2rnV/V±0.1 %
Maximum safe overload ........................150% of R.C.
Combined error .......................................0.03% of R.O.
Recommended excitation voltage .......DC12V
Maximum excitation voltage ..................DC15V
Zero balance ...........................................±1% of R.O.
Input terminal resistance ......................780±20Ω
Output terminal resistance ...................700±10Ω
Insulation resistance ............................Greater than 500MO/DC50V
Operating temperature .........................-10°C to 40°C
Temperature effect
Zero ..........................................................0.04% of R.O/10°C
Span ........................................................0.014% of Load/10°CTyp.
Cable diameter/Length ........................ø 5.6/5m
Dustproof/Waterproof ...........................IP67

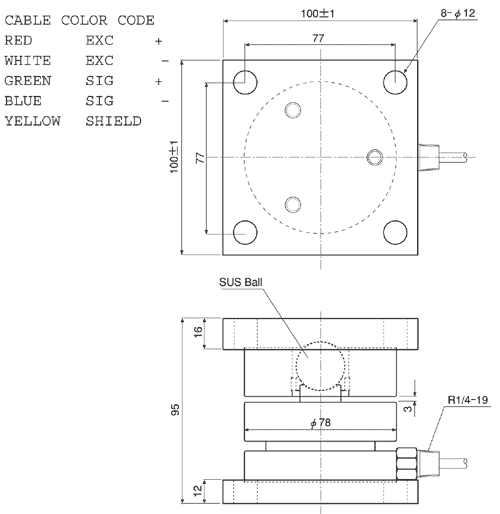

Drawing

Unit=mm
