Load Cells

LC-4221

Stainless steel body construction protection from water, moisture and corrosion

Features

• Hermetically sealed with stainless steel bellows protects from water and moisture
• Stainless steel body is ideal protection from corrosion
• Compact size and lightweight
• For both tension and compression usage
• Dual guided cantilever design for high accuracy
• Can be used for multi-point weighing
• Temperature compensation maintains both zero and span from -10°C~+60°C(+14°F~+140°F)

Specification

Rated capacities..........................10kgf, 20kgf, 50kgf, 100kgf, 200kgf, 300kgf
Rated output...............................2mV/V±0.2%
Maximum safe overload.............200% of rated capacity
Combined error..........................± 0.05% of rated output
Creep......................................... ± 0.1 % of rated capacity/hour
Zero balance...............................1% of rated capacity
Compensated
temperature range........................-10°C~+60°C/+14°F~+140°F
Recommended
excitation voltage........................12V
Maximum
excitation voltage...................15V
Input terminal resistance .......Approximately 400Ω
Output terminal resistance....350Ω±3.5Ω
Insulation resistance............Greater than 5,000MO at DC50V
Temperature effect
Zero......................................0.007% rated output/°C -
Span.........................................0.002% rated output/°CTyp.
Cable length...........................5rn/195 inches

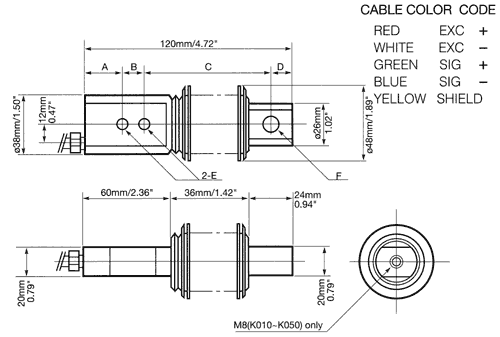

Drawing
