Load Cells



LCC11/N



For truck scale and hopper scale

Capacity
Model No.
10tf
  LCC11T010/LCC11T010N
20tf
  LCC11T020/LCC11T020N
30tf
  LCC11T030/LCC11T030N

LCC11 Series (with mounting kit)
LCC11N Series (without mounting kit)

Features

Hermetical sealed stainless steel construction protection from water, moisture and corrosion(IP68)*
Advanced load design for tanks, hoppers and truck scales
Compression type

Specification

Rated capacities.................................... 10tf, 20tf, 30tf
Rated output ............................................2mV/V¡Ó0.1%
Maximum safe overload ........................200% of R. C.
Combined error .......................................0.016% of R. O.
Recommended excitation voltage .......DC5-12V
Maximum excitation voltage ..................DC15V
Zero balance ...........................................¡Ó1% of R. O.
Input terminal resistance ......................800£[¡Ó80£[
Output terminal resistance ...................2200¡Ó10£[
Insulation resistance .............................Greater than 5000M£[/DC50V
Operating temperature......................... -20¢XC to 60¢XC
Temperature effect
Zero ...........................................................0.019% of R.O./10 Typ.
Span .........................................................0.010% of Load/10Typ.
Cable diameter/Length .........................ø 8/12m
Dustproof/Waterproof ............................IP68

*The LCC11 provides for IP68 enclosure rating with greater than 100 hours protection at 1.5m immersion.

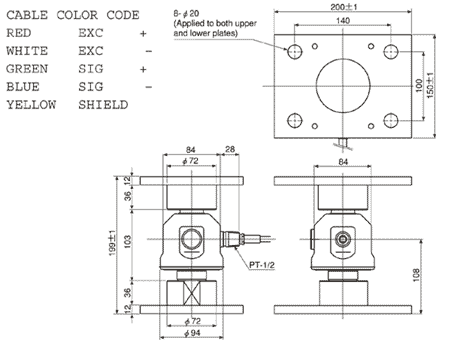

Drawing

UNIT=mm
