LCB05
Stainless Steel hermetical sealed structure ideal for application under harsh environment
|
Capacity
|
Model No.
|
|
30kgf
|
LCB05K030
|
|
60kgf
|
LCB05K060
|
|
150kgf
|
LCB05K150
|
Features
Stainless steel hermetical sealed structure
ideal for application under harsh environment
Maximum platform size is 400×400mm
Calibrated for 4 corner loads
Both tension and compression usage
Specification
Rated capacities ..................................30kgf, 60kgf, 150kgf
Rated output .........................................2mV/V+15%-0%
Maximum safe overload .....................150% of R.C.
Combined error ...................................0.03% of R.O.
Recommended excitation voltage ...DC12V
Maximum excitation voltage ..............DC15V
Zero balance ........................................±5% of R.O.
Input terminate resistance ................Approximately 390Ω
Output terminal resistance ...............350±5Ω
Insulation resistance .........................Greater than 500MΩ/DC50V
Operating temperature .....................-10°C to 40°C
Temperature effect
Zero ......................................................0.04% of R.O./10°C
Span .....................................................0.014% of Load/10°C Typ.
Cable diameter/Length .....................ø 5.6/3m
Maximum platform size ....................400mm×400rnm
Dustproof/Waterproof .......................IP67

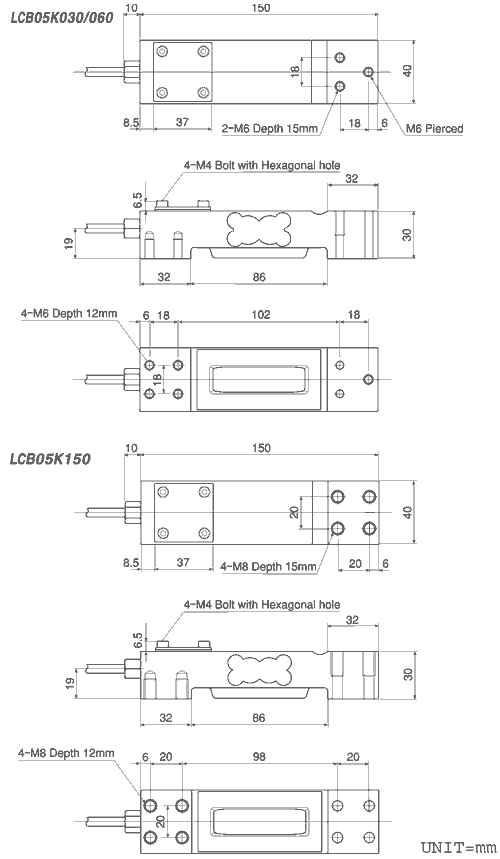

Drawing
cable Color Code
RED EXC +
WHITE EXC -
GREEN SIG +
BLUE SIG -
YELLOW SHIELD
