LC-4212

Rugged, moisture-resistant two load cell system

Features

Rugged, reliable construction
Moisture resistant, single-point construction
Overload stopper protection
Up to 4 by 6 foot pan up to 1.22 ×1.83meter (4×6 foot) par
Includes summing box
Low-cost two load cell system
300kg, 600kg and 1.2t capacities


Specification

Rated capacities ..........................300kgf, 600kgf, 1.2tf
Rated output ..................................1.5mV/V+15%/-0%(1mV/V+15%/-0%)*
Maximum deadweight .................20% (50%) of rated capacity
Maximum safe overload ..............200% of rated capacity
Combined error ............................±0.015% of rated output
Creep ..............................................±0.05% of rated output/hour
Zero balance .................................25±10% of rated output
Compensated
temperature range ........................-10°C~+40°C/+14°F~+104°F
Recommended
excitation voltage ...........................12V
Maximum
excitation voltage ...........................15V
Input terminal resistance ..............Approximately 200Ω
Output terminal resistance .........175Ω± 1Ω
Insulation resistance ...................Greater then 500MΩ at DC50V
Temperature effect
Zero .................................................0.004% of rated output/°C
Span ................................................0.0014% of rated output/°CTyp.
Platform size ..................................0.9× MAX. 2.0m (35 × MAX. 79 inches)
1.2×MAX. 2.0m(47×MAX. 79 inches)
Weight ............................................50kg (30kg) 110 Ibs (66lbs)
Cable length .................................2m/79 inches

*( ) = Specifications for LC4212-K300

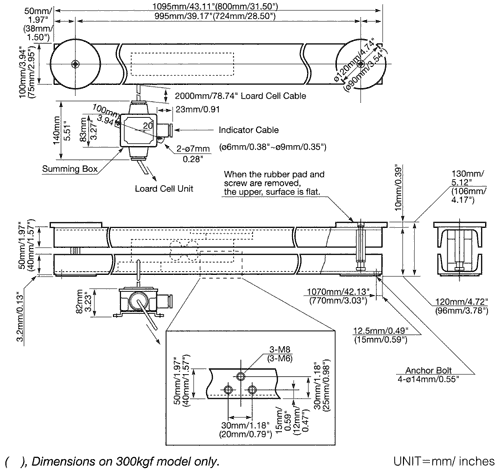

Drawing
