Features
Ultra Compact Design --Just 13cm in length
Adjusted for 4 corner loads
Moisture Proof
Wide Model Selection -8 Models


Specification
Rated capacities ..........................3kgf, 6kgf, 10kgf, 15kfg, 20kfg,25kgf, 30kgf, 35kgf
Rated output .................................2mV/V±10%
Safe overload ...............................150% of R.C.
Maximum overload ......................200% of R.C.
Combined error ...........................0.02% of R.O.
Repeatability ................................0.02% of R.O.
Creep ............................................0.02% of R.O.(30min)
Maximum excitation voltage ......DC15V
Zero balance ...............................±5% of R.O.
Input terminal resistance ..........420±30Ω
Output terminal resistance .......350±5Ω
Insulation resistance .................Greater than 2000MΩ
Operating temperature............. -10°C to 40°C
Temperature effect
Zero ..............................................0.023% of R.O./10°C
Span .............................................0.014% of R.O./l 0°C
Cable diameter/Length ø 3.5/0.4m

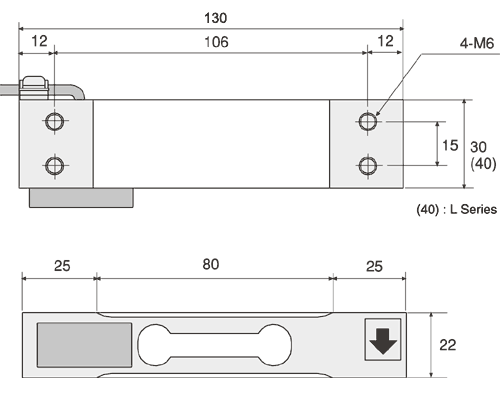

Drawing
