Load Cells

LC-4103

For use with medium size platforms, single point compact load cells

Features

- Parallelogram-type construction
- 400×600mm platforms can be used
- Temperature compensation maintains both zero and span from-10°C~+40°C (+14°F~+104°F)
- Deadweight up to 80 % of capacity. Load weight and deadweight up to 180% of capacity
- Moisture proof
- Compact and lightweight


Specification

Rated Capacities ..........................60kgf, 100kgf, 1 50kgf
Rated output ..................................1mV/V+15/-0%
Maximum deadweight .................80% of rated capacity
Maximum safe overload .............300% of rated capacity
Combined error ...........................± 0.015% of rated output
Creep .............................................±0.05% of rated output/hour
Zero balance ...............................20 ± 5% of rated output
Compensated
temperature range .....................-10°C~+40°C/+14°F~+104°F
Recommended
excitation voltage .......................12V
Maximum excitation
voltage .........................................15V
input terminal resistance .........Approximately 400Ω
Output terminal resistance .....350Ω±5Ω
Insulation resistance ...............Greater than 5000MΩ at DC50V
Temperature effect
Zero .............................................0.004% of rated output/°C
Span ............................................0.0014% of rated output/°CTyp.
Platform size .............................400×600mm/15.8×23.6 inches
Cable length .............................2m/78 inches

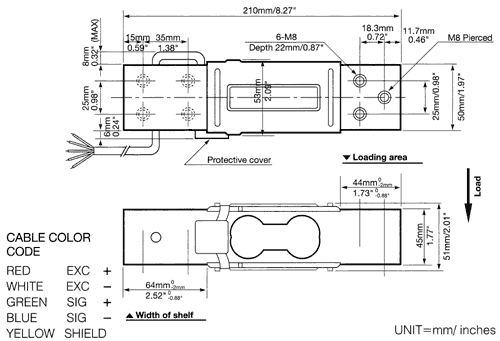

Drawing
