Load Cells

LC-4102

For small and medium capacity weighing system,single point compact load cells

Features

Parallelogram-type construction
Temperature compensation maintains both zero and span from-10°C~+40°C (+14°F~+104°F)
Deadweight up to 80 % of capacity. Load weight and deadweight up to 180% of capacity
Moisture proof
Compact and lightweight


Specification

Rated capacities ..........................10kgf, 1 5kgf, 30kgf, 60kgf, 150kgf
Rated output .................................1mV/V+15/-0%
Maximum deadweight ................80% of rated capacity
Maximum safe overload .............300% of rated capacity
Combined error ...........................±0.015% of rated output
Creep .............................................±0.05% of rated output/hour
Zero balance ................................20±5% of rated output
Compensated
temperature range .....................-10°C~+40°C/+14°F~+104°F
Recommended
excitation voltage ........................12V
Maximum
excitation voltage .......................15V
Input terminal resistance .........Approximately 400Ω
Output terminal resistance......350Ω±5Ω
Insulation resistance ...............Greater than 5000MΩ at DC50V
Temperature effect
Zero .............................................0.004% of rated output/°C
Span ...........................................0.0014% of rated output/°CTyp.
Platform size .............................400×400mm/15.8 ×15.8 inches
Cable length .............................1.5m/59inches

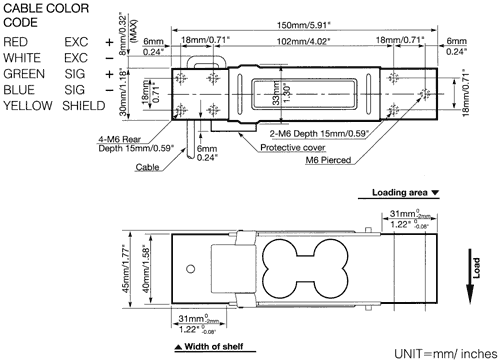

Drawing
